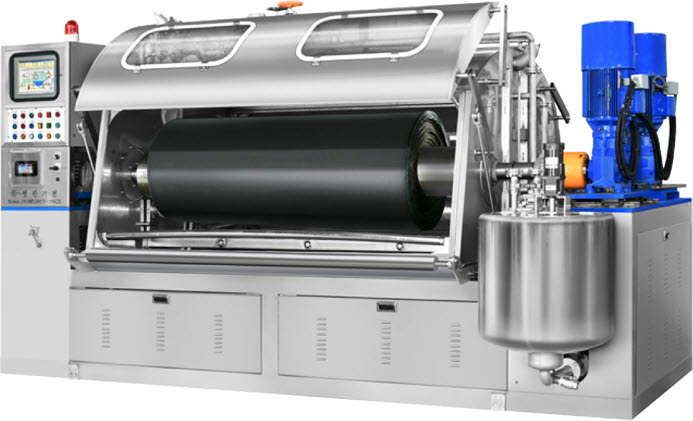

| Normal Pressure Jigger Dyeing M/C |
|
| Model. SJD |
 |
|
 |
|

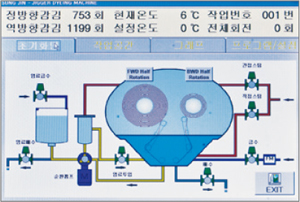

COMPUTER CONTROL SYSTEM
It can control all of things at touch screen computer and it is displayed full working data at monitor.
Operator controls a process easily by programmed automatic system and saved all of processing dates automatically and can analysis the process after processing.
It makes to improve reproducibility of process and stable quality of fabric.
|
|
|
 |
DRIVING SYSTEM
Speed can be controlled accurately by the vector drive system.
The dynamic torque control system keep constant tension without any additional brake system.

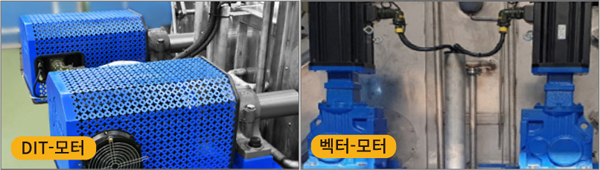

Can choose one of two systems of motor, as reducer motor or direct motor following customer's inquiry
|
|
FEATURES
TENSIONLESS SYSTEM
Can make constant tension and speed during rotation of fabric by controlling of speed and torque simultaneously. Can get excellent quality of fabrics from tensionless system like spandex blended fabrics and very light fabric, micro fabric and so on.
AUTOMATIC SYSTEM
It can set standardization of dyeing process by full automatic operation. Can reject the mistake of manual operation at processing.
WIDE APPLICATION RANGE
Can make variable and valuable fabrics through our tensionless jigger as spandex blended fabrics, New micro fabrics, Nylon, Polyester, Acetate, Silk, Rayon and cotton. Can easily develop new fabric following market inquiry.
COMFORTABLE MAINTENANCE
Most of system consist of full automatic system and strong frame to protect vibration. Control all of things by electric way without physical brake. It can make easy operation and maintenance.
AUTOMATIC SELVEDGE CONTROL SYSTEM
Have three functions as
- Protect listing of fabric through oscillating roll.
- Control moving of selvedge by electric joy stick with wanted scale, not by bar with sense.
- Exactly arrange the selvedge of fabric roll automatically with guide device.
|
|

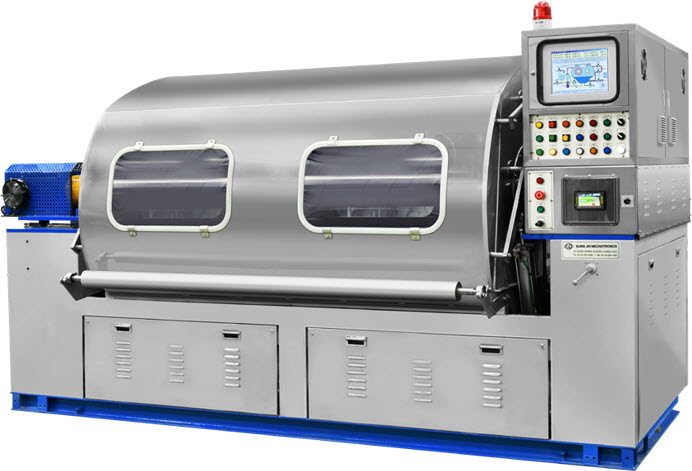

| Model. SJM |
 |
|

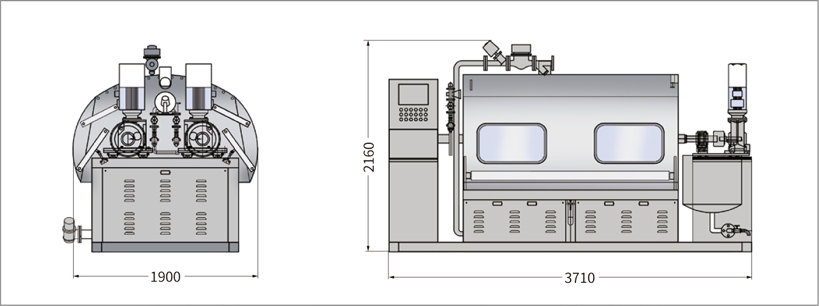

| Layout (SJM-N) |
 |
|

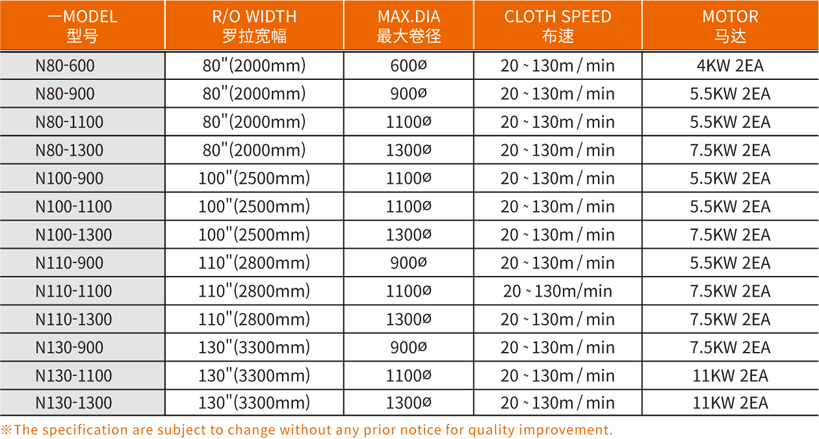

| Specification |
 |
|
|
|
|
|
